Air Pollution Control (APC) equipment has a wide variety of applications.

The facilities shall be operate in compliance with EPA regulation, also the services shall be depend on the plant requirements, recover valuable by-products etc.

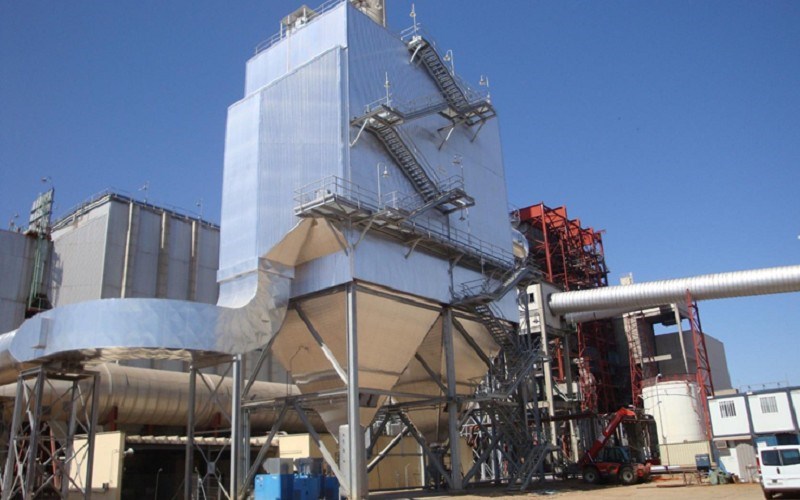

ELECTROSTATIC PRECIPITATOR (EP)

Electrostatic Precipitator (EP) is a high efficiency particulate removal device that collects suspended particulate matter from high temperature combustion or process gas streams. The electrostatic precipitator works by first charging the particulate matter entrained in the gas stream with high voltage discharge electrodes (DE), and then electrostatically influencing those particles to oppositely charged collecting plates (CE) within the ESP.

Clyde Bergemann EEC Precipitator incorporates state-of-art design elements consisting of RIGITRODE® discharge electrodes, MODULOK™ collecting plates, OPTI-RAP™ rapping systems and DOCIII™ microprocessor based automatic voltage controls to provide unsurpassed emissions performance and equipment operating characteristics.

RIGITRODE® discharge electrodes have successfully demonstrated excellent performance characteristics over a wide variety of applications and performance requirements. The electrode is fabricated from tubing with uniformly spaced corona studs welded along the length of the electrode to optimize the voltage/current relationship required for each application. Assembled into the precipitator as a rigid structural matrix, the system has sufficient stiffness to resist displacement due to electrical forces and lateral forces resulting from over-full hoppers.

The MODULOK™ collecting electrode was specifically developed to achieve exact plate alignment and structural integrity necessary for today’s challenging applications, yet still provide excellent rapping response for dislodging the collected particulate. Extensive testing and broad application have demonstrated its superior ability to transmit rapping energy and its clean ability under all types of service and plate heights. The plate is comprised of a series of roll formed modules with interlocking edges that snap securely together for a strong mechanical bond. The design requires no field assembly and prevents deformation and oil-canning which occurs when individual panels are welded together along their vertical height.

Clyde Bergemann EEC can offer a variety of rapping system options. In each case, the entire rapping system is located outside the gas stream and can achieve plate acceleration in excess of 200g. Clyde Bergemann EEC offers an array of microprocessor based controls for its precipitator system. The DOCIII™ automatic voltage power controller and the OPTI-RAP™ rapping system controller are the latest in a series of state-of-the-art features.

FABRIC BAG FILTER (BF)

Fabric Filter is used in many fields for collecting the particle from the Coal and Oil- fired boiler on power generation plant, cement plant, iron and steel plant, pulp and paper plant, incinerator and biomass plant, etc.

The typical collection efficiency is exceed 99%, which can reduce emission to less than 20 mg/Nm3 or emission < 5mg/Nm3.

The Pulse-Jet Fabric filter systems consist of the round SS cage and Filter Bag which enables the particle flows from the inlet of chamber to the surface of filter bag. when the particle is collecting to the high level came the press drop, the compressor will be initiated and inject the purge air into the fabric bag, expand the bag and let the particle fall into the surge hopper.

The selection of the Filter bag material depends on the operation of Fabric system, e.g Temperature, Pressure, Particle size and characters, Water content, design of Service life etc. It will impact the build up, maintenance and operation cost in future.

The pneumatic conveyor system will be initiated when the particle reach the level switch at the surge tank, the compressor air will be injected into the D-pump. the Dome valve will open and the dust or particle will be transferred to the Ash Silo and waiting for discharge.

We offers a high efficiency, low emission and low cost equipment for a variety of process applications, also providing the high technical and commercial solutions.
